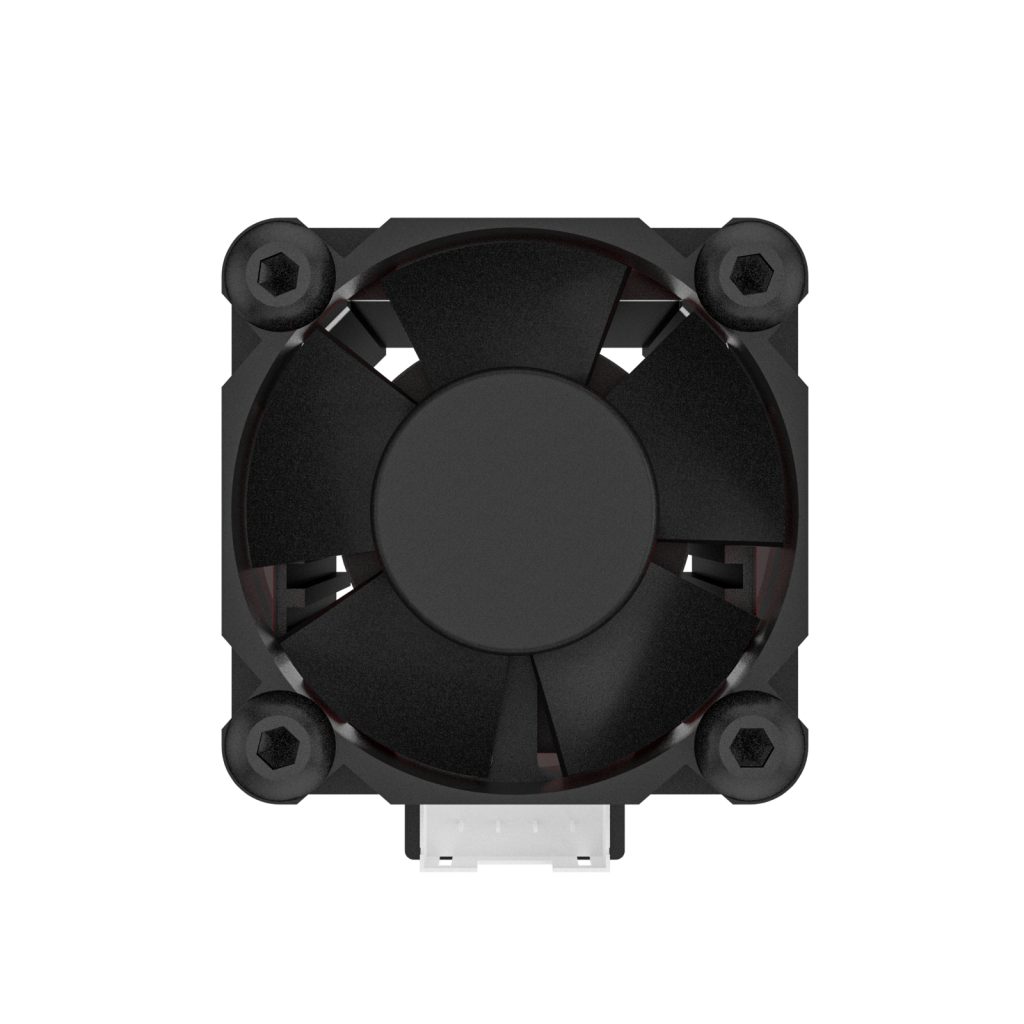

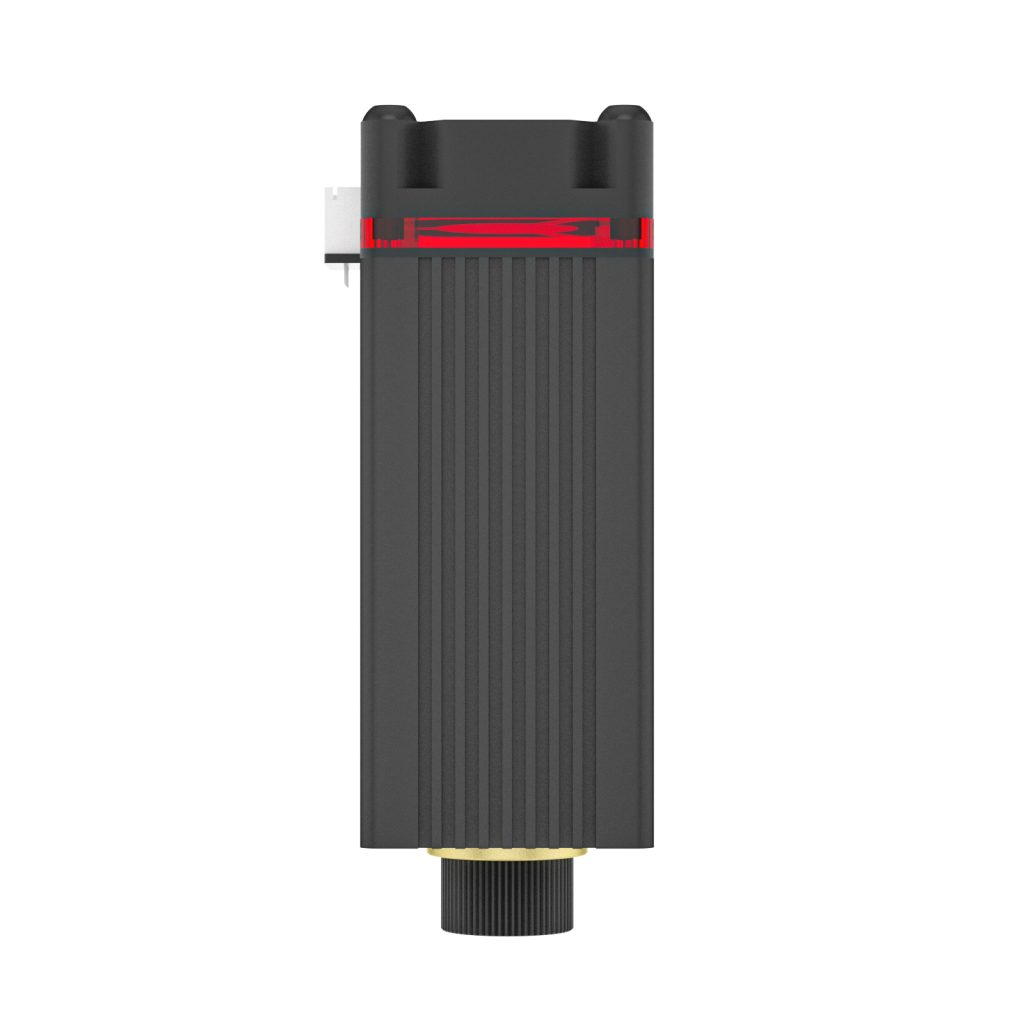

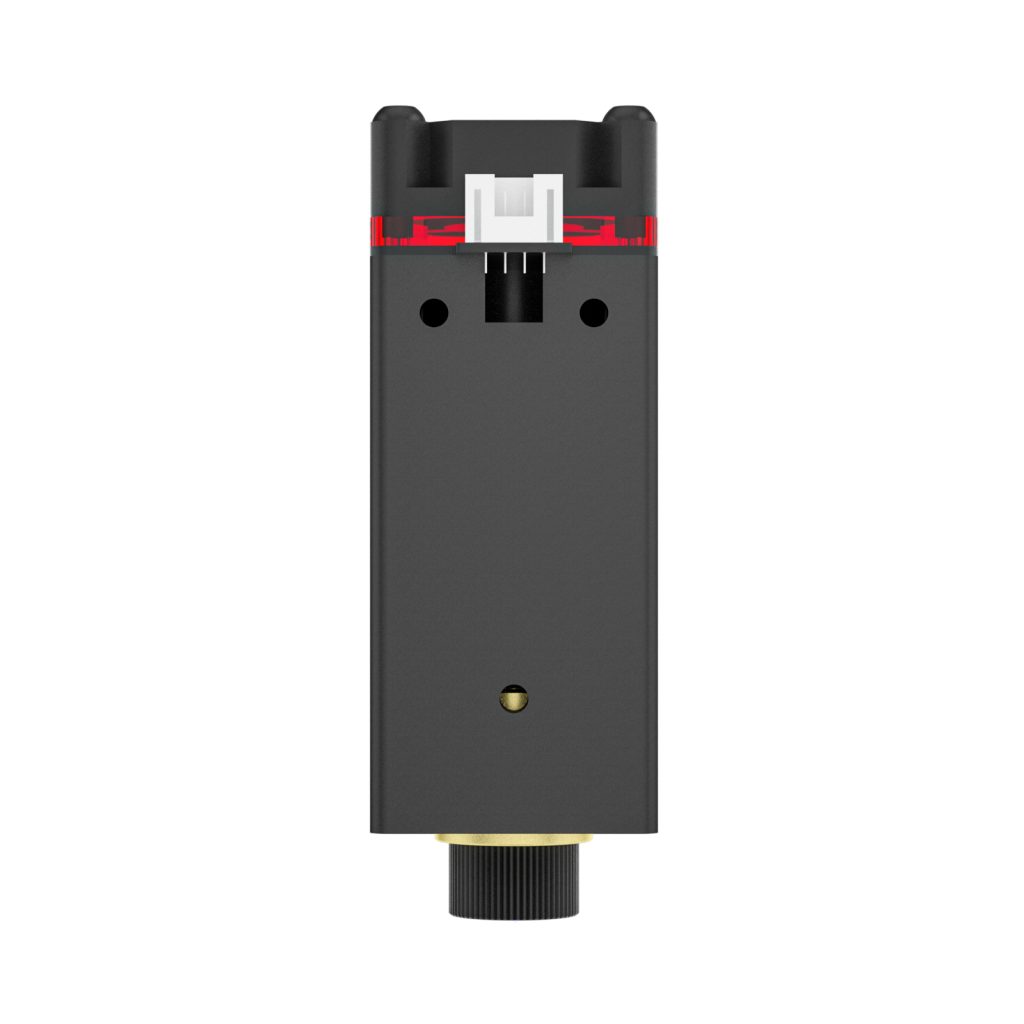

NEJE N30610 Laser Module Description & Details

SPECIFICATION

Module Input:10W

Laser Output Power: 2.5W (2500mW)

Wavelength: 445-450nm

Beam Shape:0.02×0.02mm Focus Dot (Focusable)

Input Voltage: DC 12V

TTL&PWM Modulation: YES, Compatible with Both TTL & PWM Modulation

Input Voltage: DC12V

PWM/TTL Input:    DC3.3V-12V

Input Interface: PH2.0-4Pin (+,-, PWM/TTL, Temperature), 3Pin (+,-, PWM/TTL) , 2Pin+2Pin (+,-) + (PWM/TTL,-)

Drive Mode:External ACC

Safe temperature range:<70 ℃

Module weight:115g ( The lighter the weight, the smaller the moving inertia, the better the performance )

Life Time:20,000 hours

Package Included

  • 1 x Laser Engraving Module
  • 2 x Screw
  • 2 x ABS cushion post
  • 1 x L-shaped wrench
  • 1 x 4 Pin Cable(300mm Sports Cable)
  • 1 x NEJE Interface adapter board
