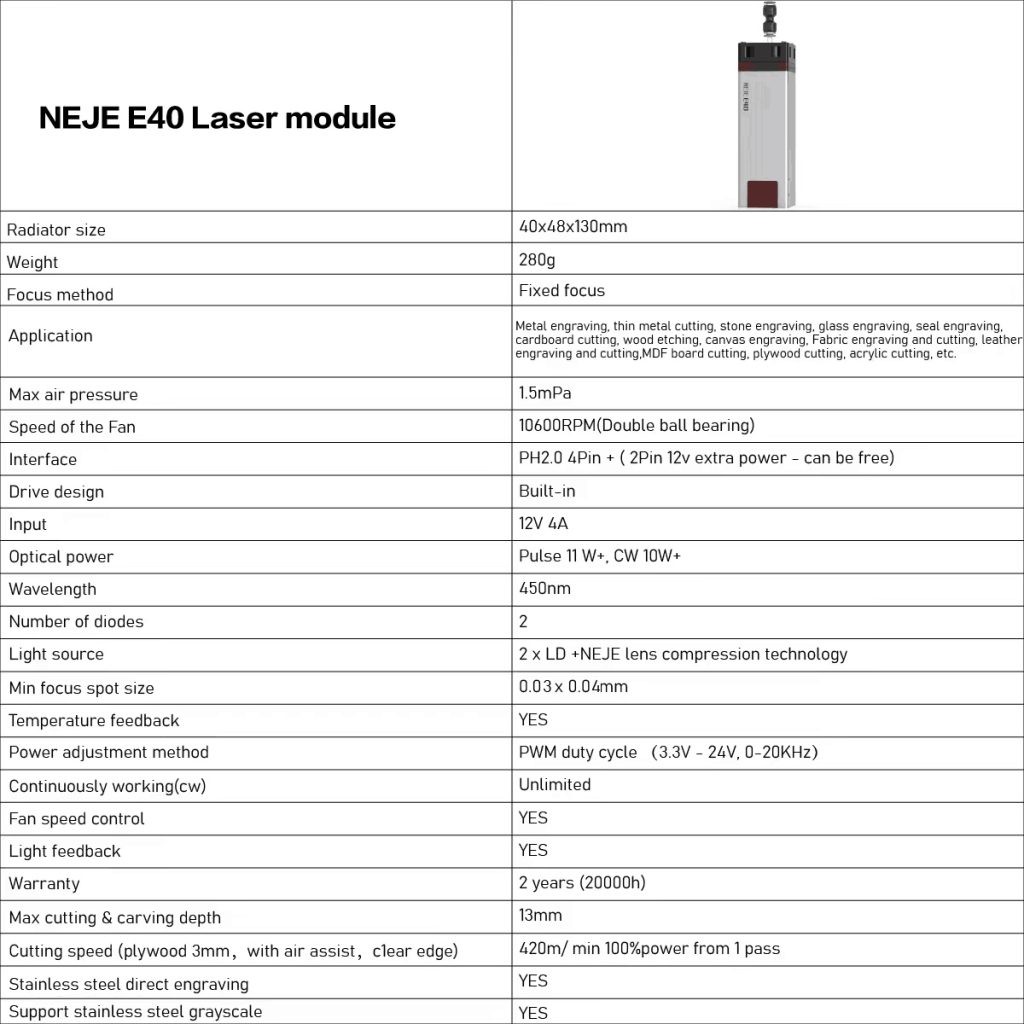

SPECIFICATION

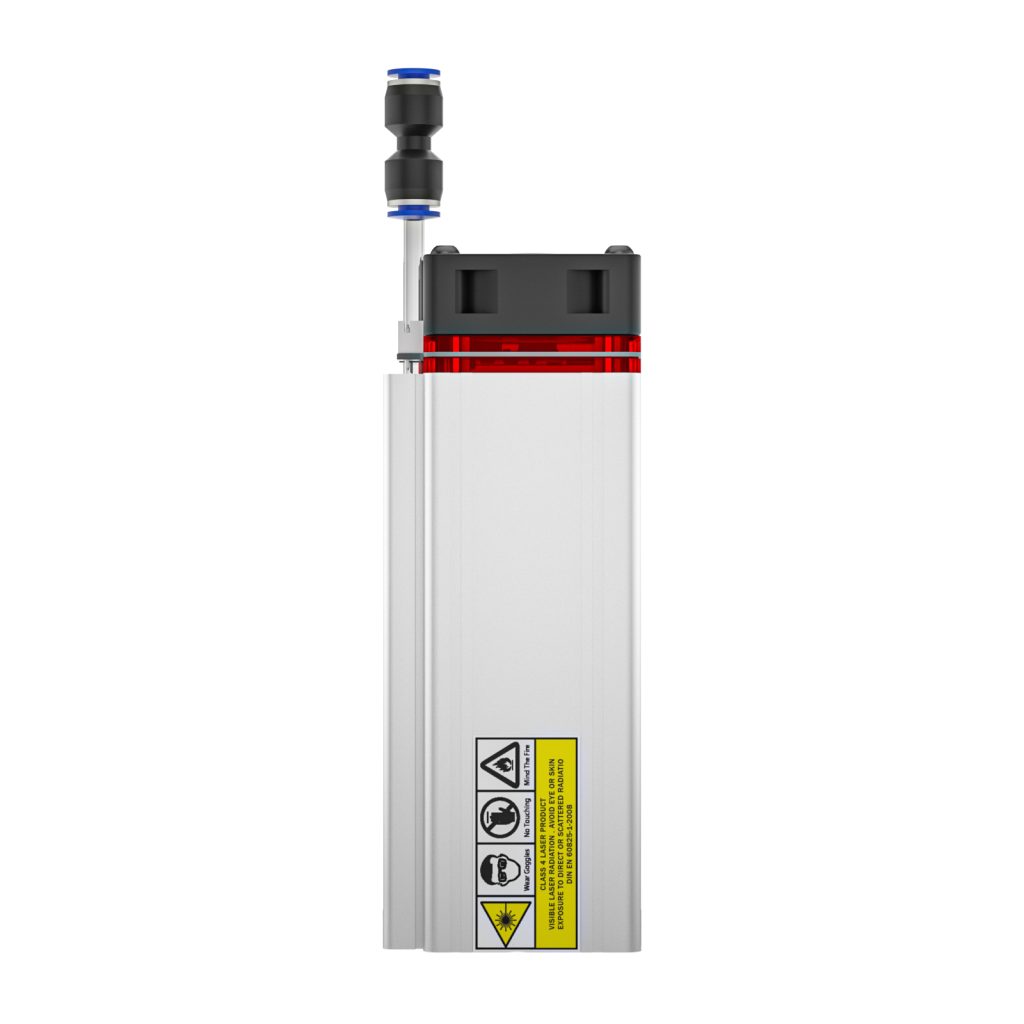

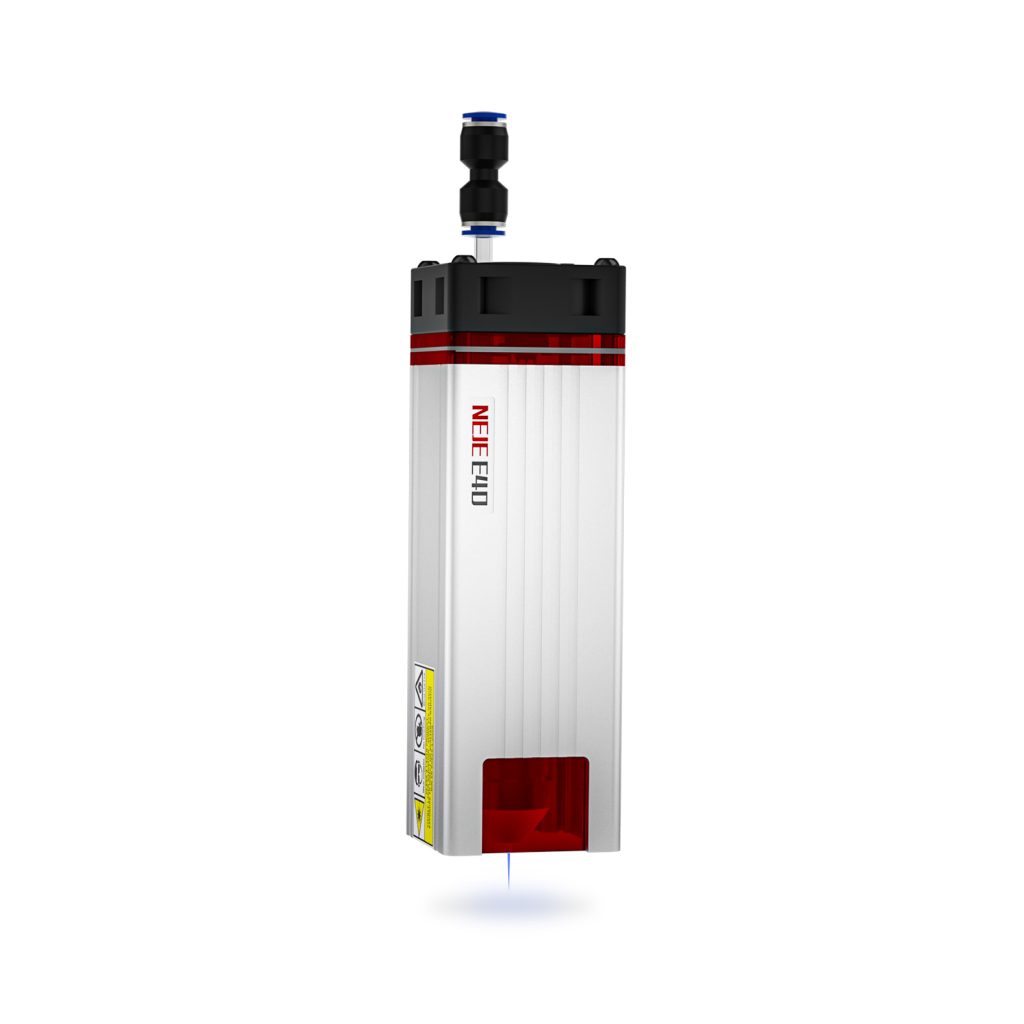

E40 Laser Module
Focus: 0.03×0.04mm
Focus method: fixed focus( 3-5mm from the radiator )
Optical power: Pulse 11W+, CW 10W+
Max scanning speed: 1000mm/s (mdf material clear test results)
Compatible: compatible with any 24V or 12V equipment, independent power supply, controlled by ttl 2pin signal of the equipment
Wavelength: 450nm
Weight: 280g
Module Size: 40x48x130 mm
Input: DC 12V 4A

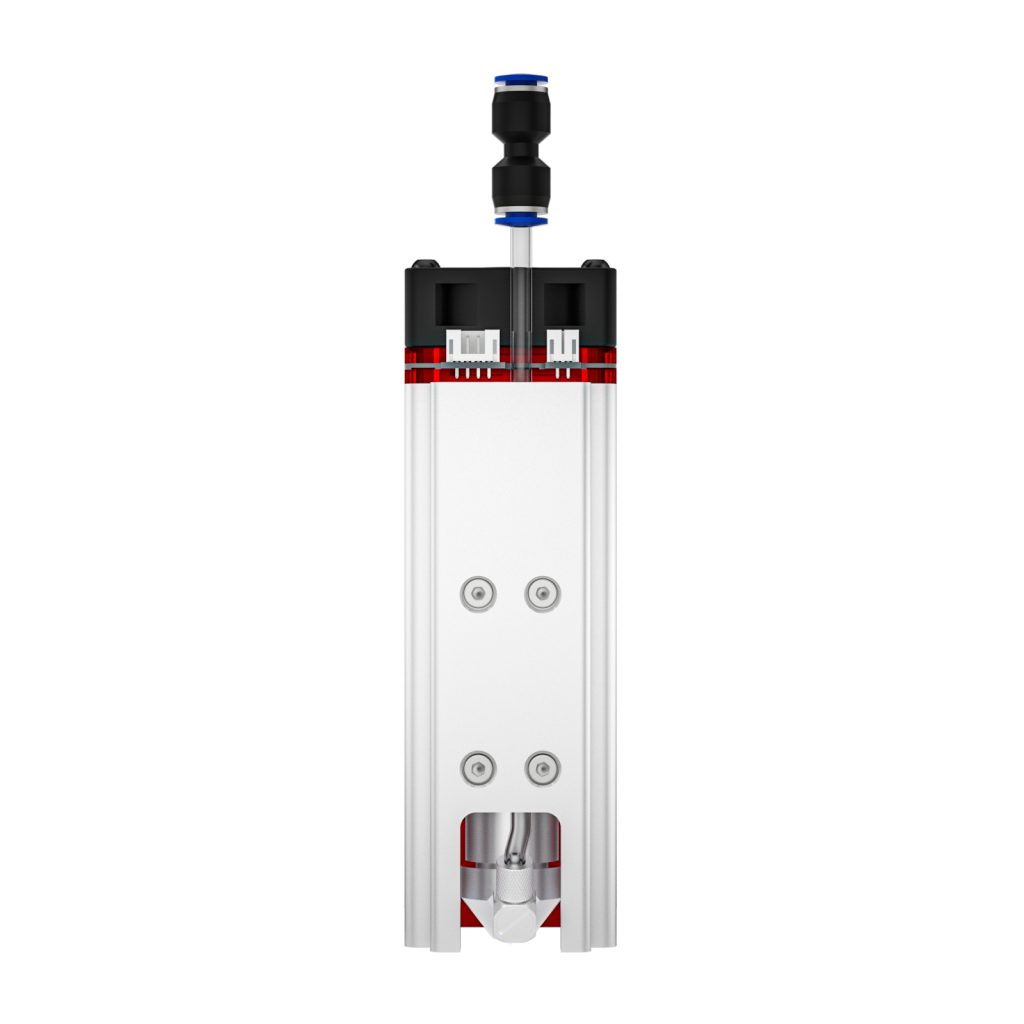

Interface: 4pin PH2.0 + ( 2pin DC12v extra power )
Compatible with: NEJE 3 Max, NEJE 3 Pro, NEJE 2s Max, NEJE 2s Plus, etc…
Power Control: PWM Power Modulation

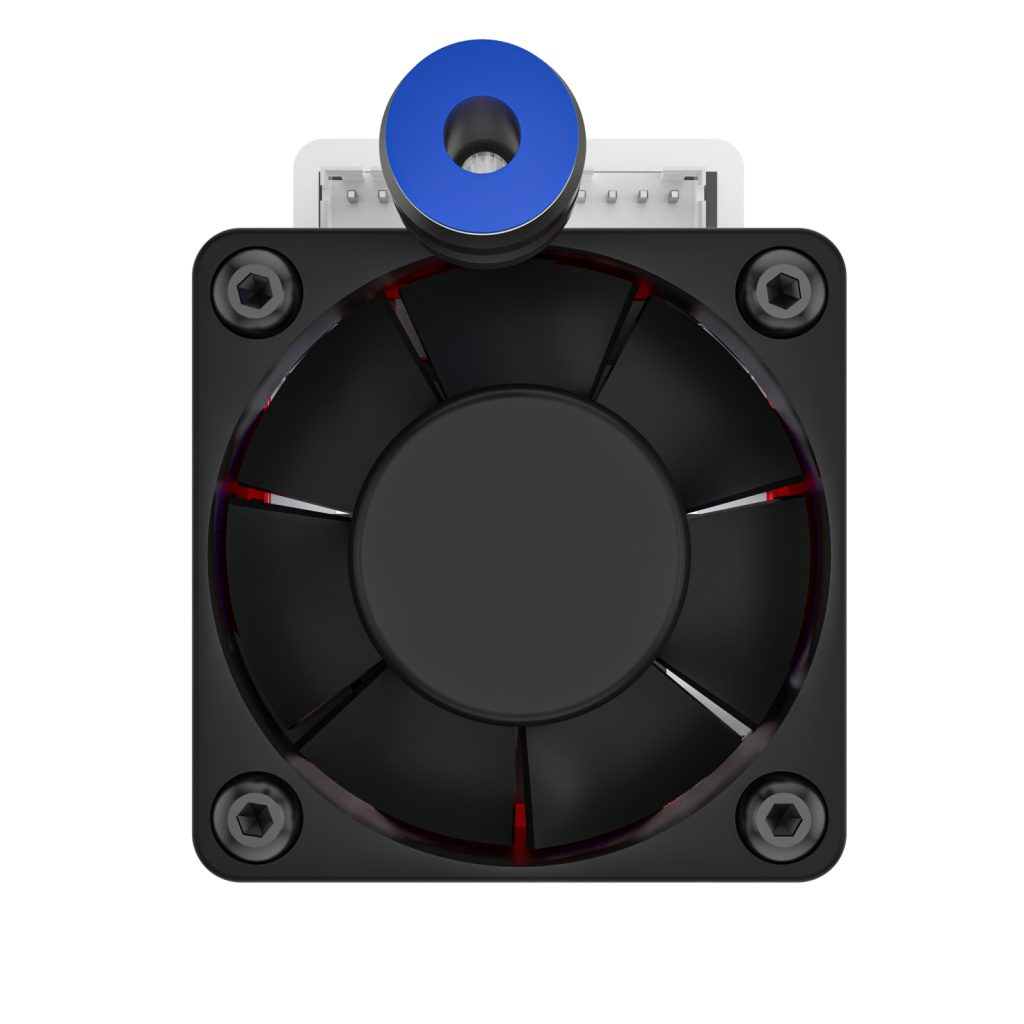

Fan: Double Ball High Life Fan
Drive: NEJE Smart Quiet Drive, Built-in static elimination technology.
Surge Protection: Yes
Smart Feedback: Yes
Temperature Feedback: Yes
Temperature control: 45℃
Air pump: ACO 328+ air pump, or 30psi+ waterless air pump (used when cutting mdf / leather and higher density materials. Needle type air nozzle supports oily and water-containing air source, and sealed air nozzle can only use clean air pump)
Air interface: 4mm pvc trachea
Protective window lens: Yes ( withstand 1000℃ )
Original registered brand: Yes
Package list:
- 1 x NEJE E40 laser module ( Built-in high-pressure air nozzle )
- 1 x Laser module height adjuster
- 1 x 4 pin cable(30cm)
- 1 x 2pin yellow and black signal line + 3pin input line
- 1 x NEJE digital PWM temperature test / switch / interface adapter board
- 1 x NEJE test / switch / interface adapter board
- 1 x 2.5mm L-shaped wrench
- 1 x 5mm L-shaped wrench
- 1 x Tube (4mm x 2m)
- 1 x connector ( M8 to M4 )
