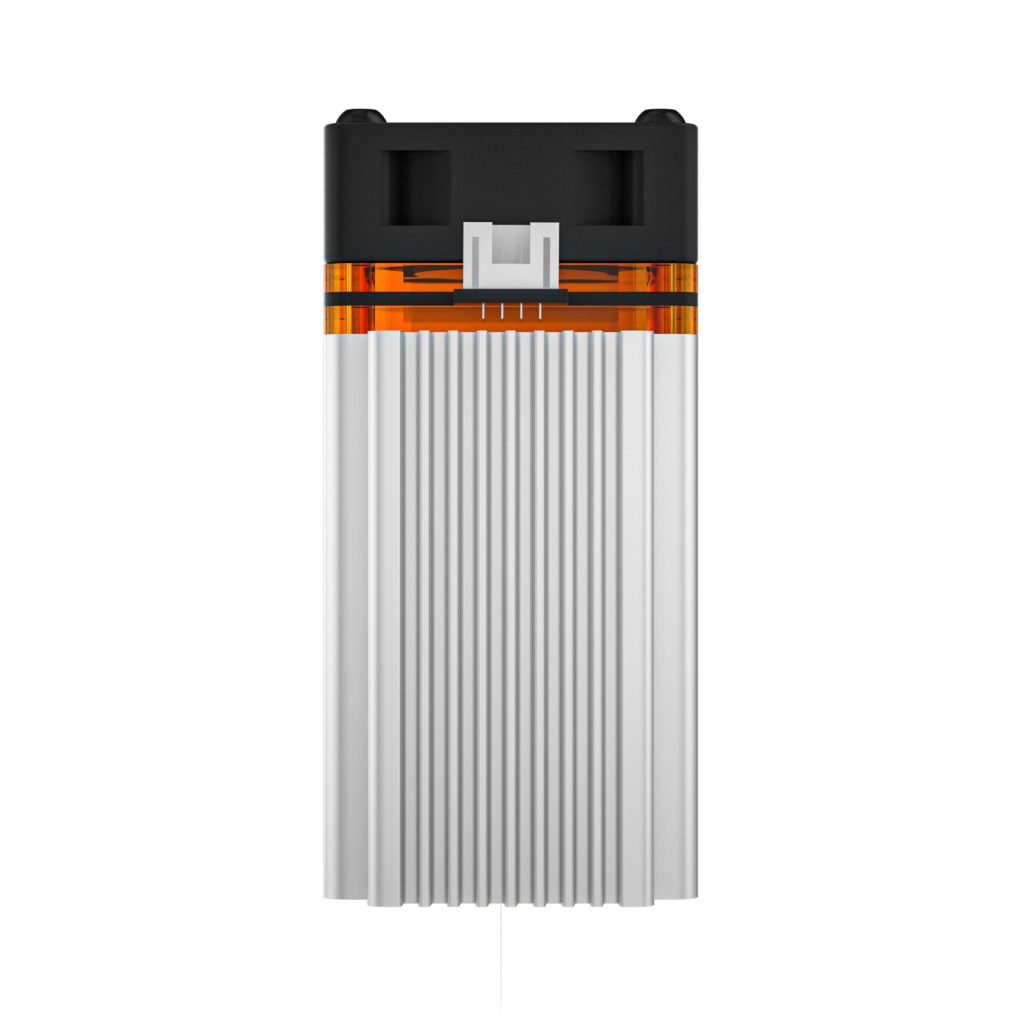

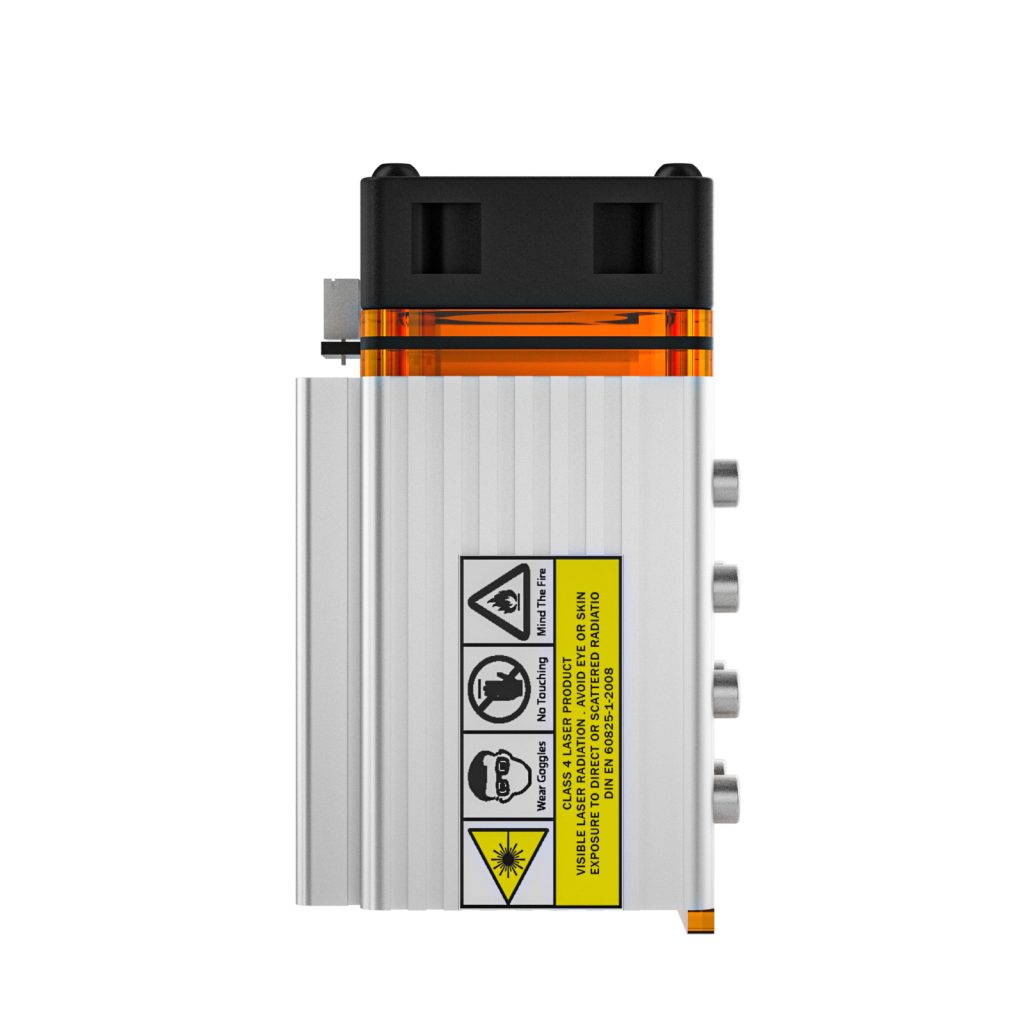

NEJE A40630 Laser Module Description & Details



Heatsink Material:Aircraft Aluminum + Brass Shell

Luminous Color:Blue

Section Size:40mm x 40mm

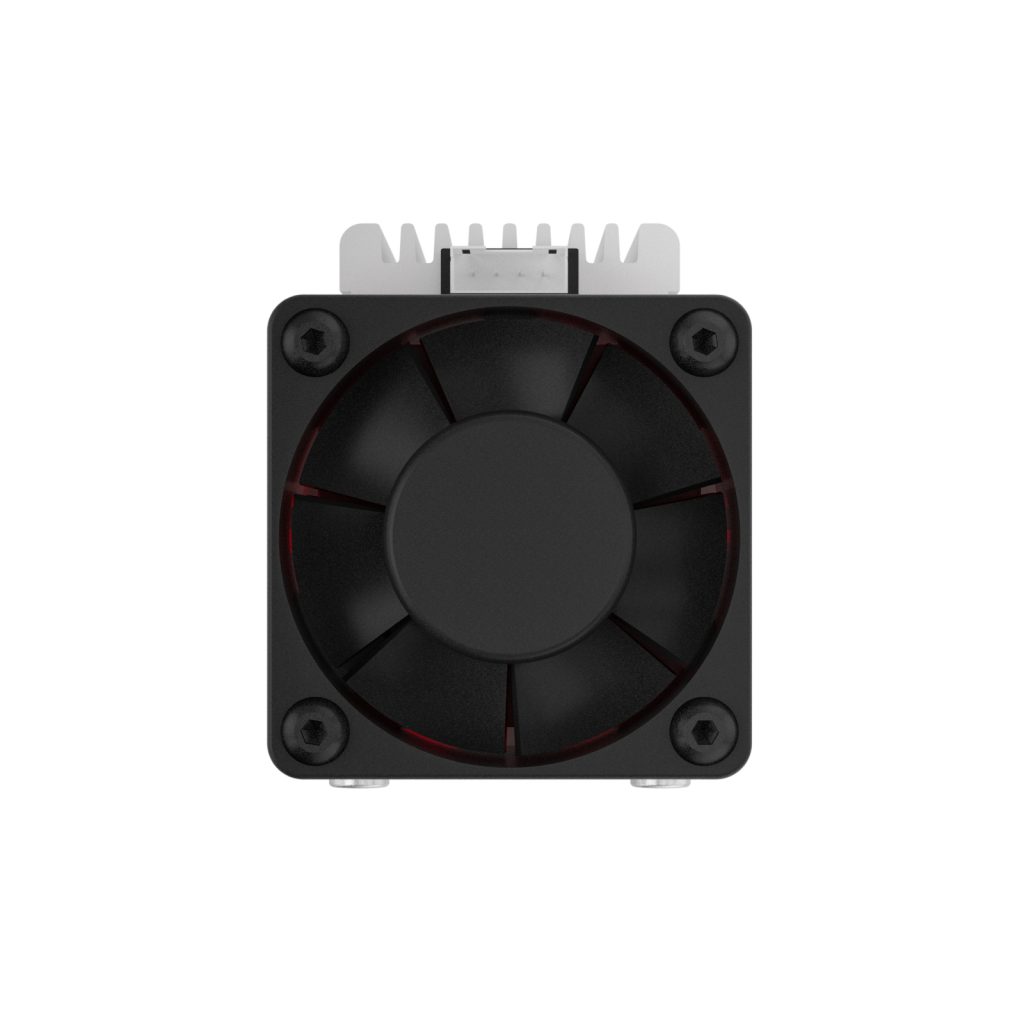

Cooling Mode:Temperature sensor intelligent control + 10000 rpm 40mm cooling fan

Dimension:60 * 40 * 40mm

Adapter Plug:5.5 2.1 port

Can Engrave:MDF/Balsa/Paper/Wood/Fabric/Plastic/Leather/Plywood/Foam Paper/Anodized Aluminum

Can Not Engrave:Metal/Glass/Stone/Ceramics/PCB/Stainless Steel/Reflective Material/ Transparent Material

Module Input:20-30W

Optical power output:5.5W


Beam Shape:Dot (Focusable)

Working Voltage:DC 12V

TTL&PWM Modulation:YES, Compatible with Both TTL & PWM Modulation

Input Voltage:DC12V 3A

PWM/TTL Input:DC3.3V-12V

Input Interface:PH2.0-4Pin (+,-, PWM/TTL, Temperature), 3Pin (+,-, PWM/TTL) , 2Pin+2Pin (+,-) + (PWM/TTL,-)

NOTE:Temperature interface can be disconnected,NEJE provides text instructions for temperature acquisition on the wiki.

Drive Mode:External ACC

Safe temperature range:<60 ℃

Module weight:202g ( The lighter the weight, the smaller the move inertia, the better the performance )

Life Time:10000-20,000 hours

Package list

  • 1 x NEJE A40630 laser module
  • 1 x Laser module height adjuster
  • 1 x 4 pin cable(30cm)
  • 1 x 2pin yellow and black signal line + 3pin input line
  • 1 x NEJE digital PWM temperature test / switch / interface adapter board
  • 1 x NEJE test / switch / interface adapter board
  • 1 x 2.5mm L-shaped wrench
  • 1 x 5mm L-shaped wrench
  • 1 x Tube (4mm x 2m)
  • 1 x connector ( M8 to M4 )
