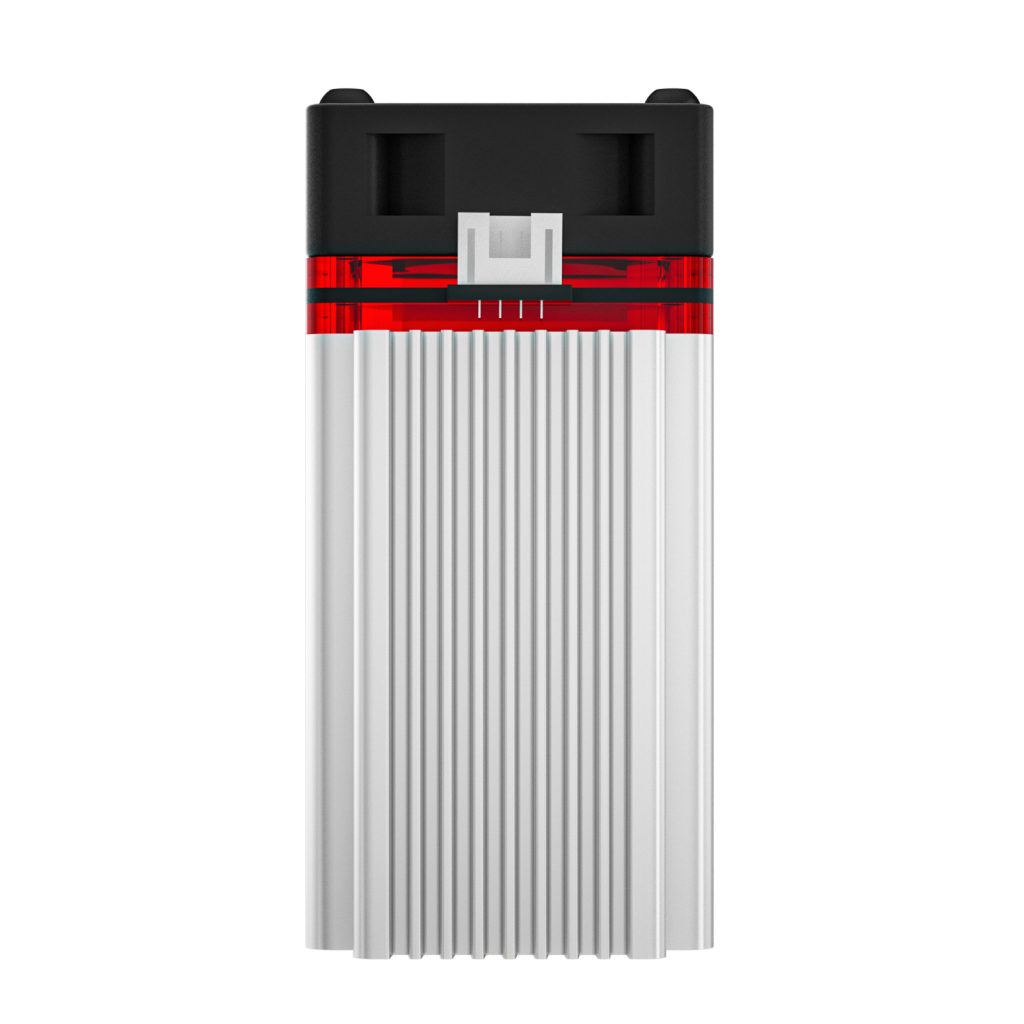

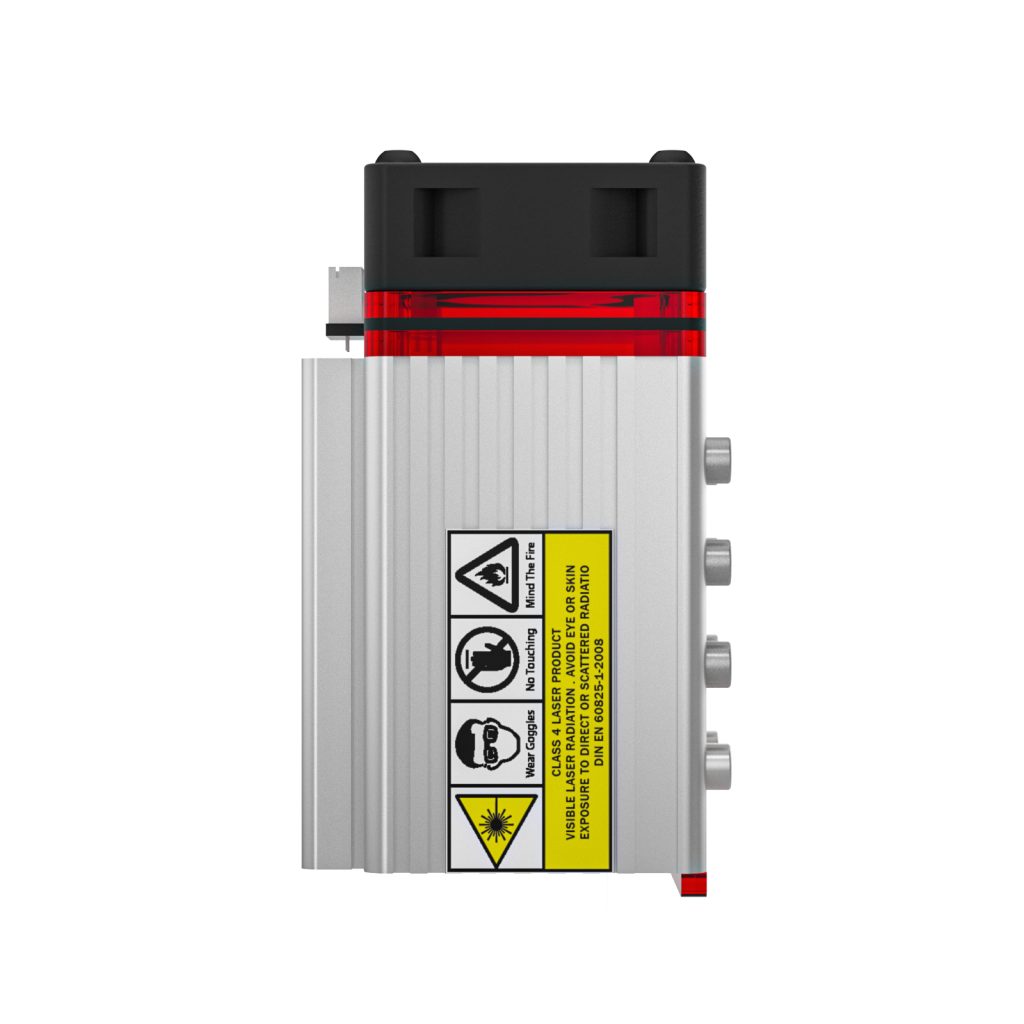

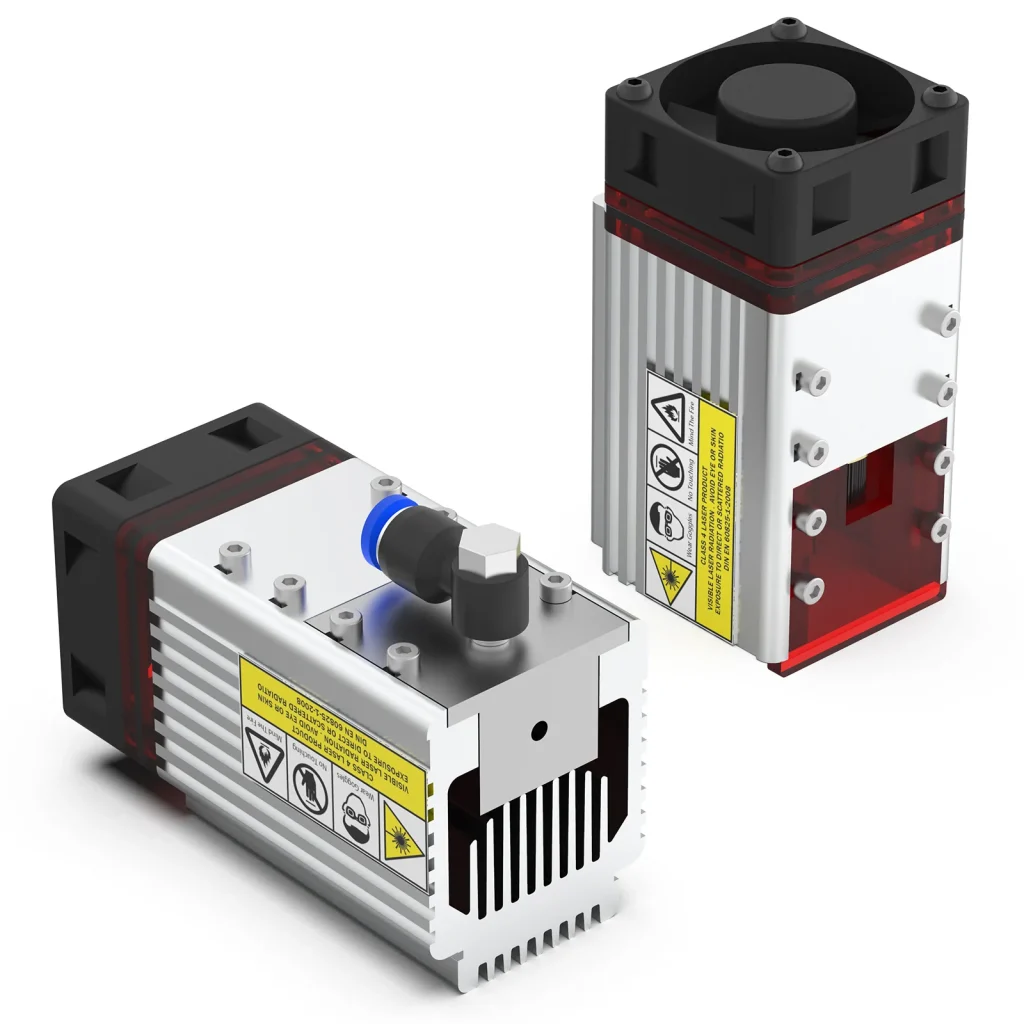

SPECIFICATION
Model：N40630
Heatsink Material：Aircraft Aluminum + Brass Shell
Luminous Color：Blue
Section Size：40mm x 40mm

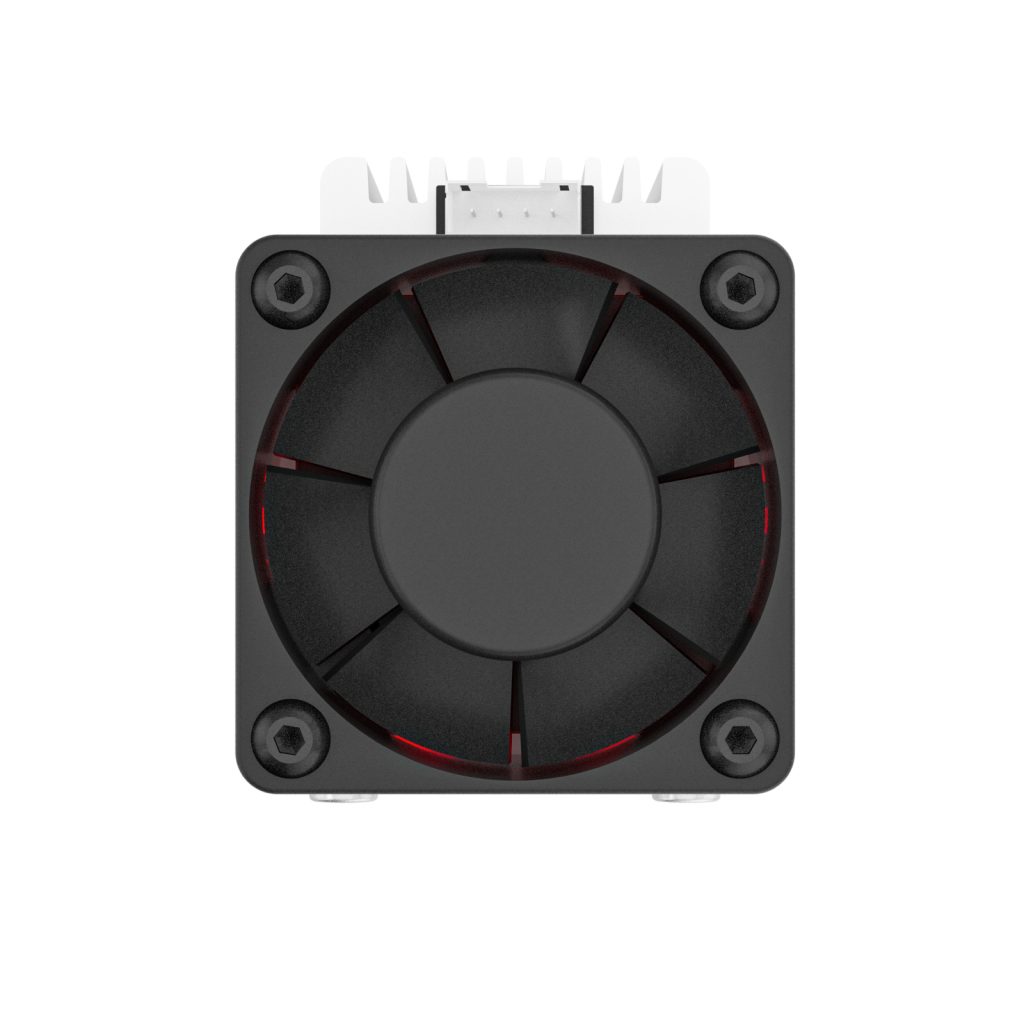

Cooling Mode：Temperature sensor intelligent control + 10000 rpm 40mm cooling fan
Dimension：60 * 40 * 40mm
Adapter Plug：5.5 2.1 port
Can Engrave：MDF/Balsa/Paper/Wood/Fabric/Plastic/Leather/Plywood/Foam Paper/Anodized Aluminum
Can Not Engrave：Metal/Glass/Stone/Ceramics/PCB/Stainless Steel/Reflective Material/ Transparent Material
Module Input：20-30W
Optical power output：5.5W
Wavelength：445-450nm
Beam Shape：Dot (Focusable)
Working Voltage：DC 12V
TTL&PWM Modulation：YES, Compatible with Both TTL & PWM Modulation
Input Voltage：DC12V 3A
PWM/TTL Input：DC3.3V-12V
Input Interface：PH2.0-4Pin (+,-, PWM/TTL, Temperature), 3Pin (+,-, PWM/TTL) , 2Pin+2Pin (+,-) + (PWM/TTL,-)
NOTE：Temperature interface can be disconnected，NEJE provides text instructions for temperature acquisition on the wiki.
Drive Mode：External ACC
Safe temperature range：<60 ℃
Module weight：202g ( The lighter the weight, the smaller the move inertia, the better the performance )
Life Time：10000-20,000 hours

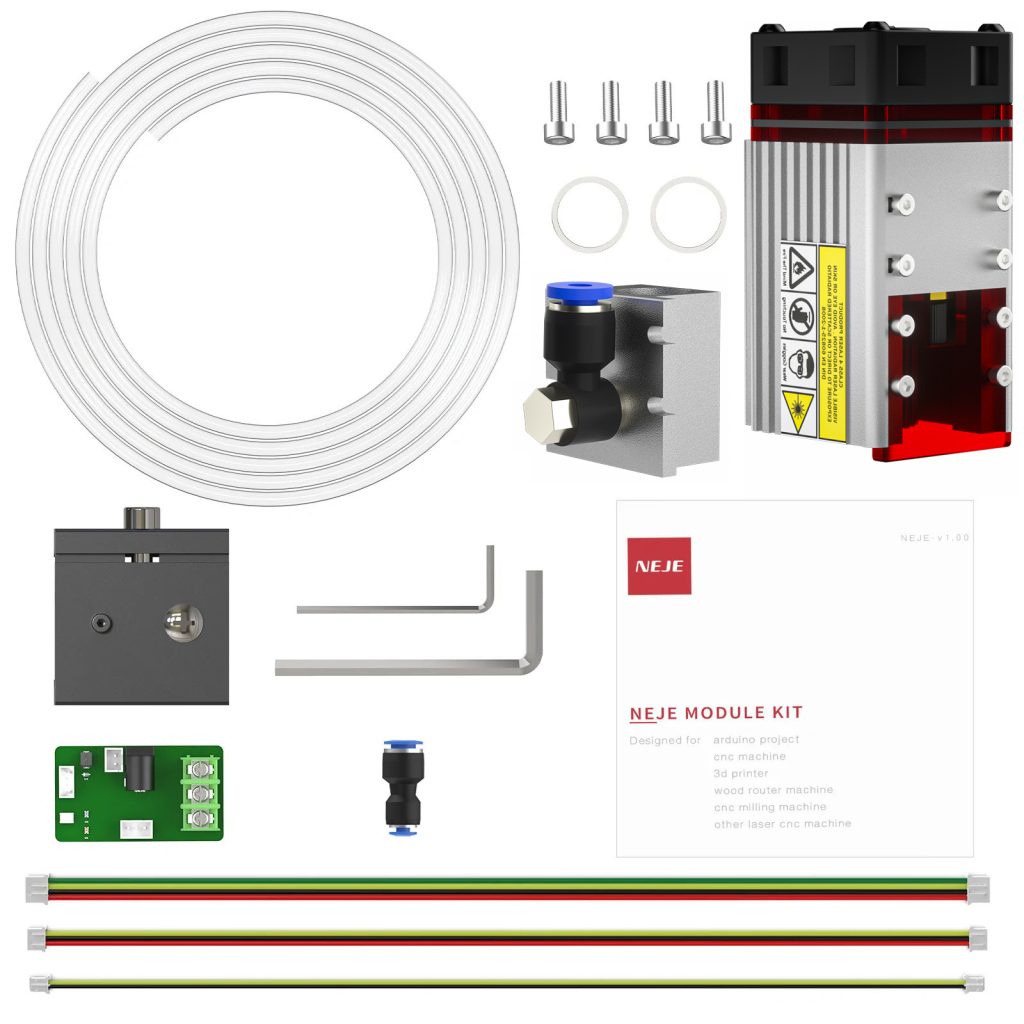

Package list
- 1 x NEJE N40630 laser module ( Built-in high-pressure air nozzle )
- 1 x Laser module height adjuster
- 1 x 4 pin cable(30cm)
- 1 x 2pin yellow and black signal line + 3pin input line

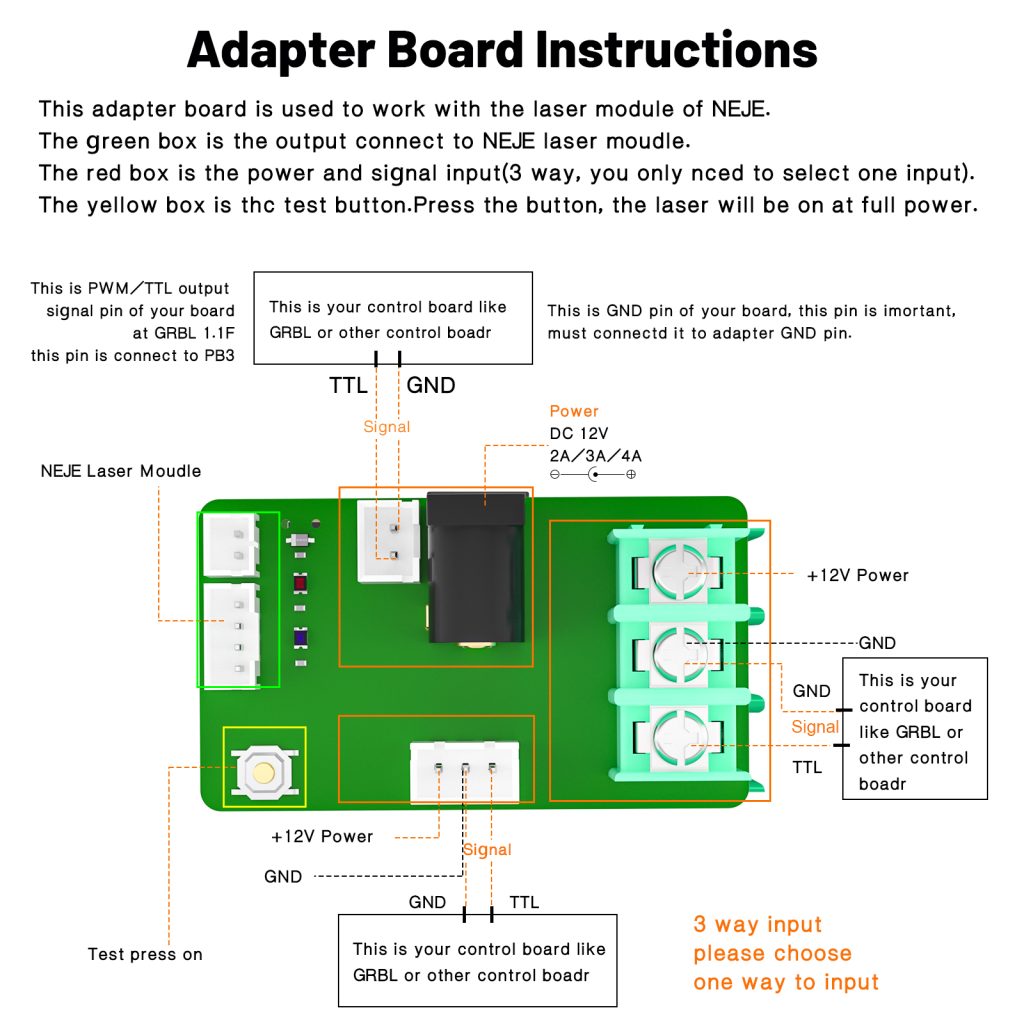

- 1 x NEJE digital PWM temperature test / switch / interface adapter board
- 1 x NEJE test / switch / interface adapter board
- 1 x 2.5mm L-shaped wrench
- 1 x 5mm L-shaped wrench
- 1 x Tube (4mm x 2m)
- 1 x connector ( M8 to M4 )
