Master engraving machine is a portable engraving machine with simple installation, safety and easy operation.
It has built-in sensor accelerometer. When the machine tilts, it will automatically stop laser work and protect from laser damage.
At the same time, it supports NEJE control software and GRBL software, which can not only enjoy the simple portability of NEJE software,
but also support the operation fun of GRBL open source software; it supports the dynamic control laser module developed by Neje,
which can support PWM power regulation, low light brightness regulation, laser temperature induction protection;
it also supports different power lasers.
It supports depth of engraving (0.5-1mm wood), thickness of cutting(0.5mm).
Supported engraving materials directly: Wood, gray paper, leather, bamboo, blackening plastics, rubber, etc.
It is not possible to directly engrave the metal. Some metals can be carved by adding coatings, blackening and heat transfer.
Built-in sensor protectiong:
Daul MCU: One MCU for Suport NEJE Controller(Windows & MAC), The Other for GRBL Controller.
150mm x 150 mm Working eara, 160mm x 160mm in GRBL Mode.
Limited Switch design.
Compatible with laser modules(3500, 7W, 20W).
Z-axis,fan,safe Key button Support.
PWM Laser Power Adjustment.

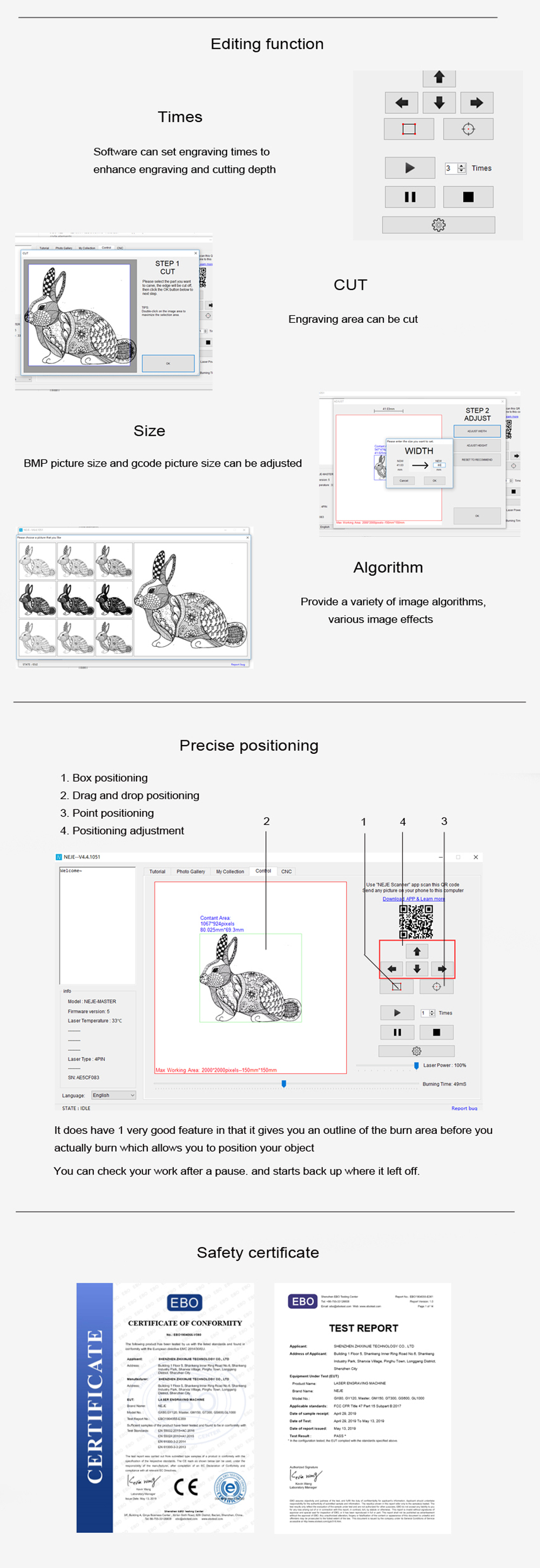

Cloud Gallery Service.
image and text Edit.
Support BMP,NC(G-code),DXF(CAD), etc... files.
NEJE Scanner(photo share).
Material: Acrylic + PP + Aluminum
Laser Power: 3500mw ( Laser input: about 12v0.3A )
Laser Wave Length: 405nm
Image Format:.nc \ .dxf \ .bmp \ .jpg \ .png etc..
Image Size:2000 * 2000 pixels / 0.075mm point distance
Support System:WinXP / Win7 / Win8 / XP / Win10, Mac OS, android APP(neje scanner)
Machine Supply Voltage: 12V2A
Items can be carved directly including: wood, bamboo, paper cards, ivory, leather, flammable plastic, PCBA, etc.
1 * Engraving Machine
1 * Protective Glasses
1 * USB Cable
1 * Power Adapter
1 * Wrench
1 * Whiteboard Marker
2 * Wood Block
5 * Paper
1.When the machine is working, it is recommended not to look directly at the laser head, and not to operate the laser head directly by hand
2.Laser diode is a sensitive component, pay attention to prevent electrostatic damage (product includes electrostatic protection design, but there is a certain probability of damage)
3.The Laser Module warranty time is 1 yesr
4.The controller board warranty time is 3 yesr
5. that the manual and CD-ROM are not included, software download and use help by neje wiki service
